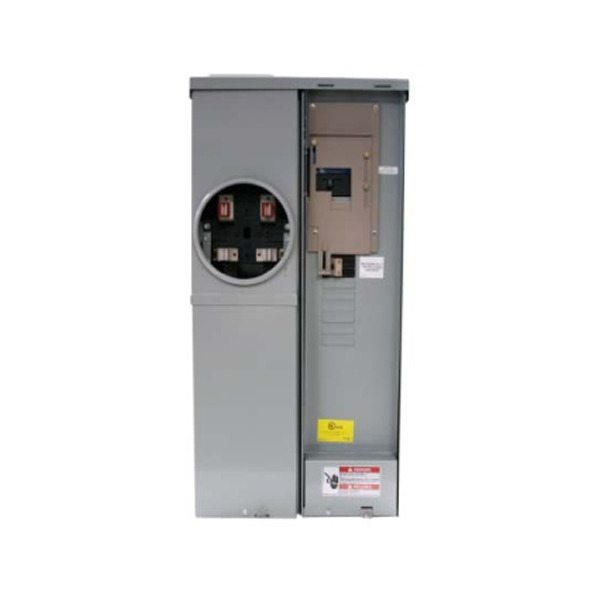

Meter Breaker; All-In-Ones; Ring; 200 A; 22 kAIC

Mfr: EATON

UPC: 78211484898

Catalog #: CMBE88B200BTS

Item #: EATON CMBE88B200BTS

$519.72 each

1 In Stock

Product must be purchased in multiples of 1 at a minimum quantity of 1

Single-phase, three-wire, 120/240V, 10 kAIC
Larger 250 kcmil lugs and additional knockouts for ease of installation
Box type main lugs are included
Factory-installed neutrals
Hub provisions on top endwall. If hubs are required, order “DS" type hubs
Ring type sockets are provided with a sealing ring
Padlockable device covers provide an additional measure of security and help prevent tampering
Most units have center keyhole for easy oneperson installation
NEMA 3R rainproof construction

SPECIFICATIONS

Overview

Single-phase, three-wire, 120/240V, 10 kAIC
Larger 250 kcmil lugs and additional knockouts for ease of installation
Box type main lugs are included
Factory-installed neutrals
Hub provisions on top endwall. If hubs are required, order “DS" type hubs
Ring type sockets are provided with a sealing ring
Padlockable device covers provide an additional measure of security and help prevent tampering
Most units have center keyhole for easy oneperson installation
NEMA 3R rainproof construction

Local Description

200A COMB METR/CB

Type

All-In-Ones

Cover Type

Ring

Current, Rating

200 A

Current, Interrupt

22 kAIC

Voltage, Rating

120/240 VAC

Phase

1 Phase

Bypass Type

No Bypass

Bus Material

Aluminum

Service

OH/UG

Number of Jaws

4 Jaw

Number of Circuits

Number of Spaces

Breaker Type

IP|NEMA Rating

NEMA 3R

Dimensions

28.38 H x 14.44 W x 5.38 D In.

Mounting Type

Surface

Approvals

UL Listed
